• Maxview Crank Up Satellite System

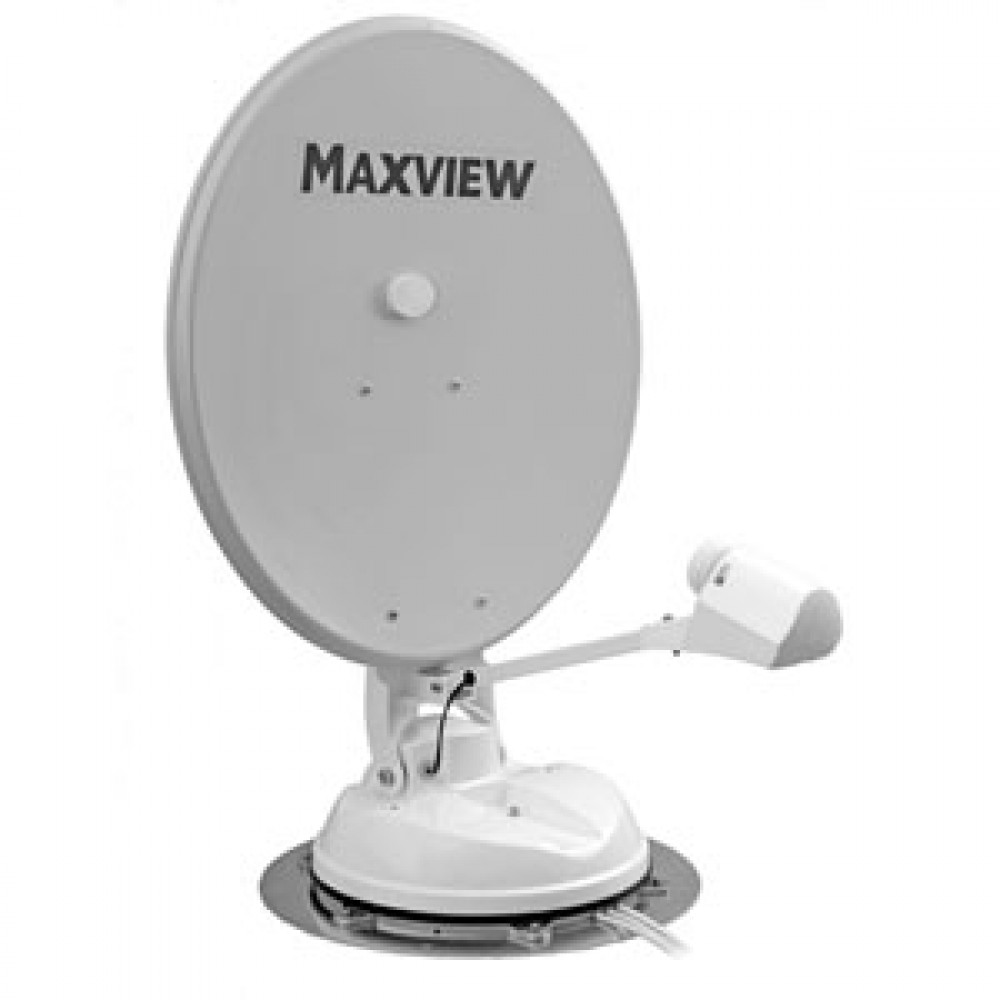

Maxview Crank Up Roof Mounted 65cm or 85cm Satellite System

Manual, roof mounted system - How does it work?

Simply adjust the elevation and azimuth of the satellite dish system from the comfort of your vehicle with the easy to operate direction unit, effortlessly raising and rotating the dish to locate and lock onto your favourite UK TV channels, anywhere in the UK / Ireland and across into Northern Europe.

The handle shown below is mounted to the internal ceiling of your Caravan or Motorhome, so you can raise or lower the Satellite dish from the comfort of being indoors, Simply crank up the satellite dish to the required elevation for your region and lock in position, now simply turn the handle clockwise untill you get a TV picture from your satellite box on your TV Screen. Nothing could be simpler for the all in cost of less than £460 which includes Courier delivery to your home or holiday address.


 - Improved handle design with clear and precise elevation display
- Low streamline profile, only 17cm in height in park position
- Elegant modern styling design
- No through the roof mast required, thus giving maximum flexibility on roof installations
- Designed for easier and improved installation
- Cable entry junction box allows for the system to be fitted in the most convenient position on roof
- Easy to align using the ceiling mounted ‘Crank Up” handle and elevation zone map
- Twin LNB as standard - Designed for use with SKY +/HD or free to air receiver with hard drive recording. Alternatively can be used to feed two separate receivers for independent working
- All weather resistant construction
- Robust design solution utilising the latest advances in CAD and Simulation software
- Designed for permanent mounting, but can be transferred to another vehicle
- Complete with Operation and Set Up Guide
- 3 year guarantee
- When in park position, the system is compact and hidden out of view and only a little higher than most sky lights

- High Quality 0.2db Universal Twin LNB

- Full customer service back up and support

B2590/65 - OMNISAT CRANK UP 65

- Antenna Unit Weight - 9kg

- 65cm Offset Aluminium Antenna

- 36dB gain


- Antenna Unit Weight - 10kg

- 85cm Offset Aluminium Antenna

- 38.1dB gain



Buy your Maxview Crank Up Roof Mounted 65cm or 85cm Satellite System from Satellite TV Shop, your UK free delivery store.

Write a review

Please login or register to review

Maxview Crank Up Satellite System

  • Brand: Maxview
  • Product Code: Crank Up Satellite System
  • Availability: Out Of Stock
  • £1,495.79
